Name: Blackline English Axle LSD Limited Slip Diff - Cortina Escort MK1 MK2 RS2000 - 22 SPLINE & Crownwheel Pinion CWP Bundle
SKU: 23596

Blackline English Axle LSD Limited Slip Diff - Cortina Escort MK1 MK2 RS2000 - 22 SPLINE & Crownwheel Pinion CWP Bundle

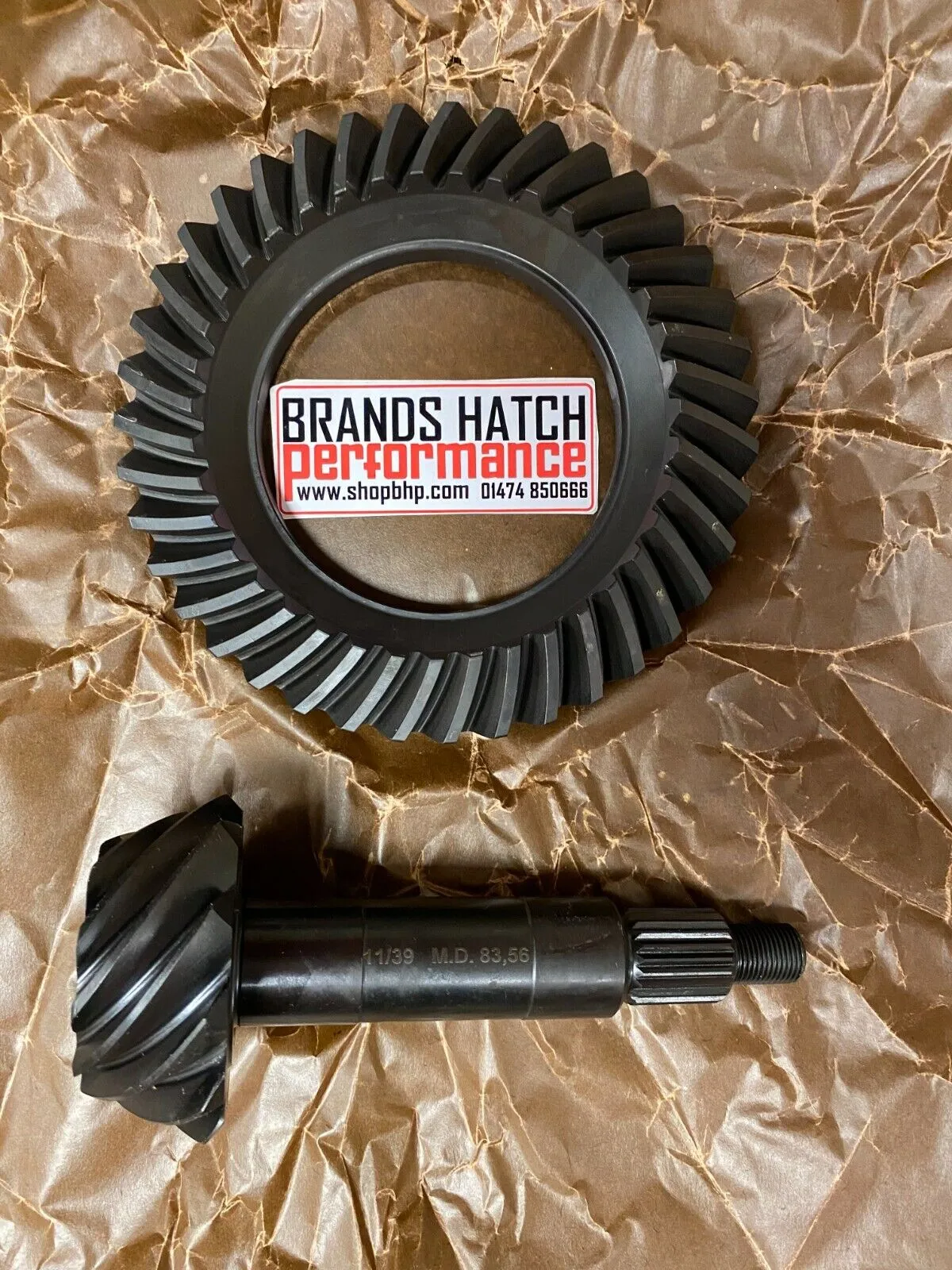

CWP RATIO CAN BE SUPPLIED 3.54 / 3.77 / 3.89 / 4.44 / 4.71 / 4.9 / 5.14 / 5.28

Suitable

-Ford English Axle, 22 Spline (Salisbury/Timken Type)

-Escort Mk1

-Escort Mk2

-Cortina Mk1

-Cortina Mk2

-Anglia 105E

-Prefect 107E

Please Check Fitment is correct before purchasing!

Helical LSD Advantages:-

Equal rotational speed to both wheels
Torque distributed according to traction
Minimal service requirements - no clutches
Quick reaction compared to viscous LSDs
Gentle and progressive engagement, low noise
Easily controlled power take-off and drifting
Gears and body manufactured from 8620 alloy steel
Direct replacement into stock differential

Blackline Helical LSD's - How They Work

The Blackline helical LSD's are torque biasing, that is they distribute torque between the wheels, loading more torque towards the wheel with the best traction thus improving performance and driveabitily. Especially in low grip situations.

The helical gearing manages the distribution of friction within the LSD. When torque is applied to the helical gear system it creates force that pushes the gear into the differential body, thus creating friction. Increases of torque, increases the thrust force directly proprotional to the amount of torque. This allows the Blackline LSD to cope with considerable traction imbalance even under heavy power conditions, as would be the case on exiting a powered up corner. But at low torque conditions the LSD can differentiate quietly and smoothly, thus making the differential very suitable for normal road driving. The Blackline LSD uses the popular parallel axis helical geared configuration optimised for even load distribution. They are designed with a torque bias of 5:1 this means that if one wheel loses traction then the wheel with the most grip can receive five times as much torque as the wheel that is slipping. However, five times zero is still zero, so all these helical LSD's work best when both wheels are 'planted' and some traction is still available on the slipping wheel. In practice this is rarely a problem as there is always some 'drag' on the slipping wheel, however some drivers expertly use left foot braking to partially lock the spinning wheel.

Note - Helical LSD's work especially well when combined with modern anti-lock braking systems.

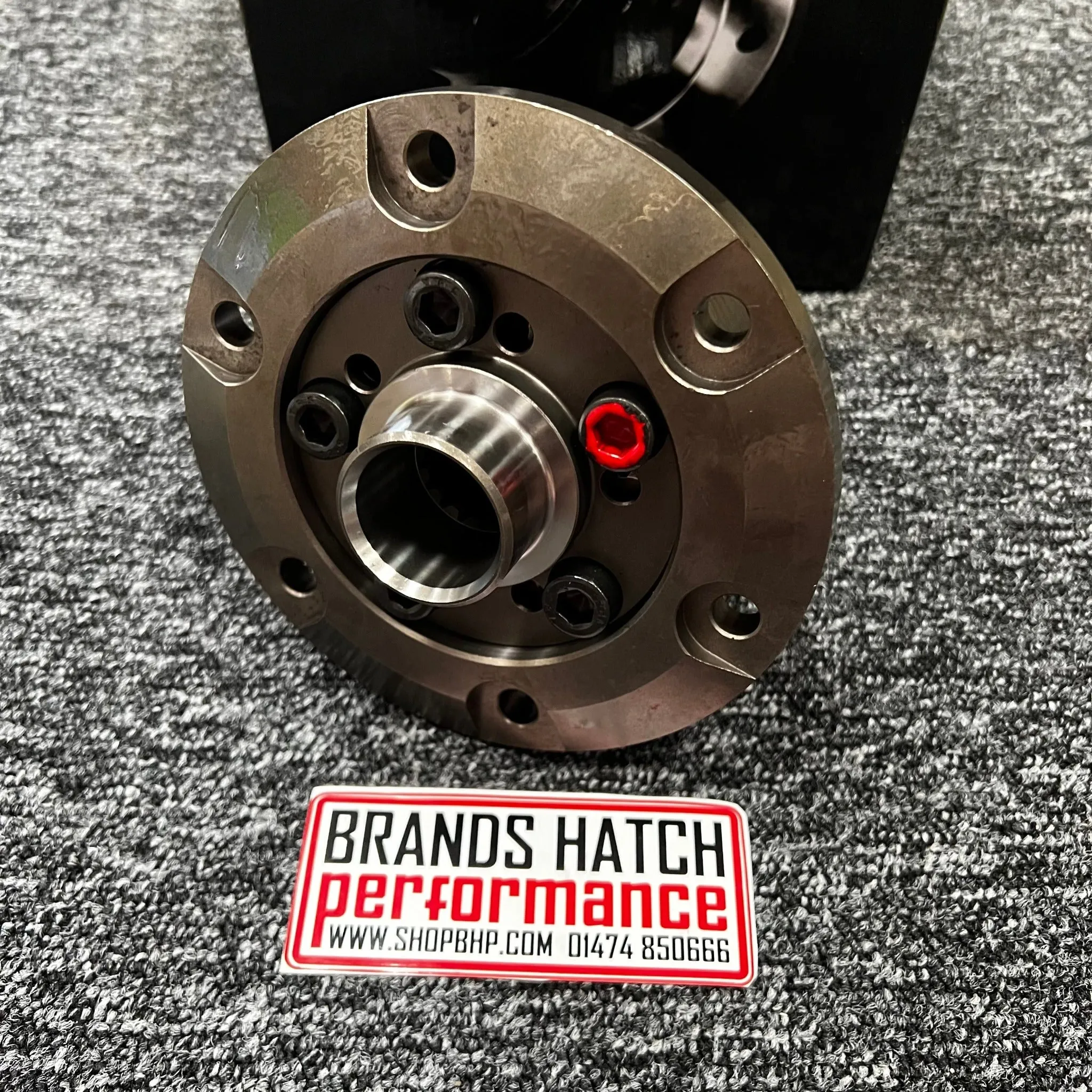

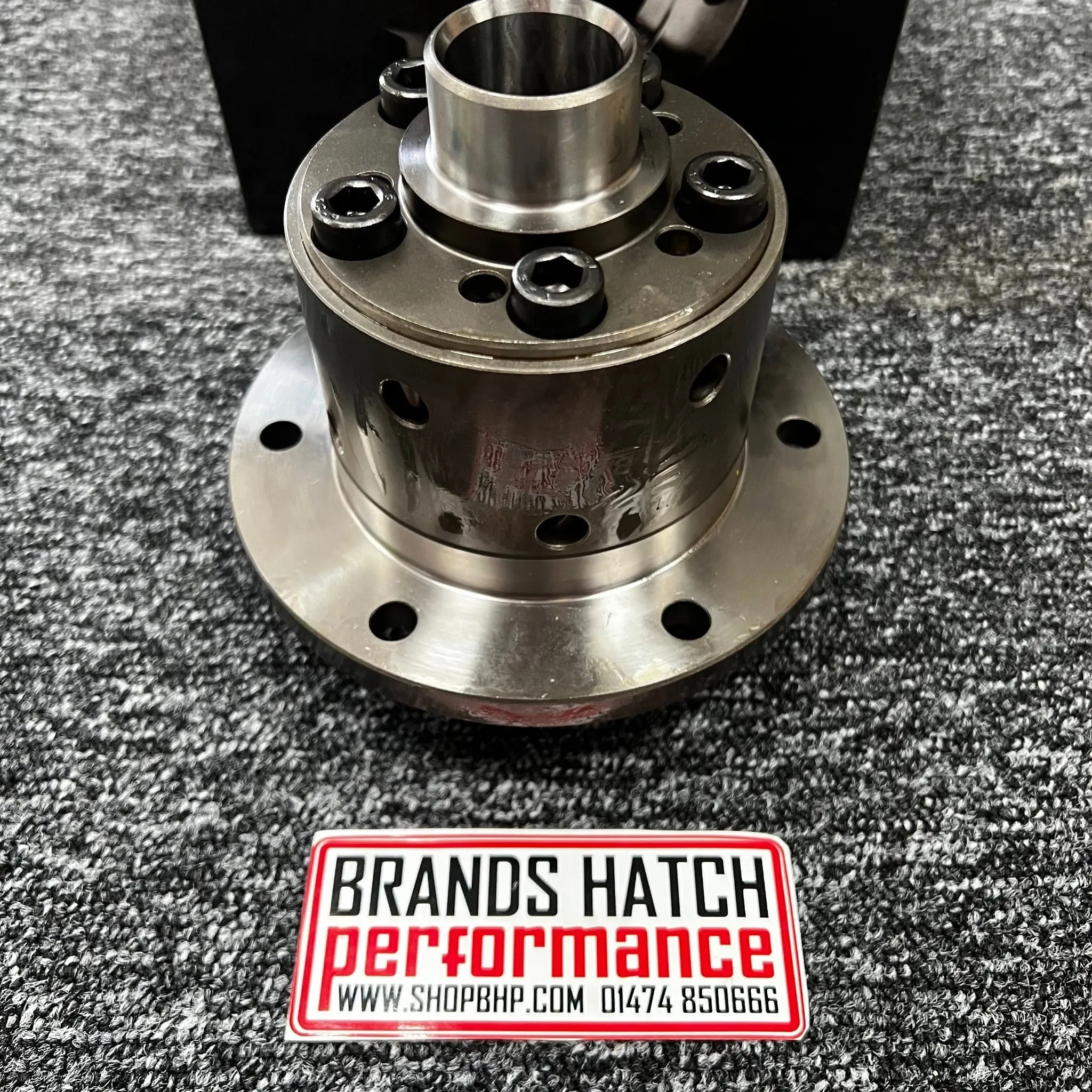

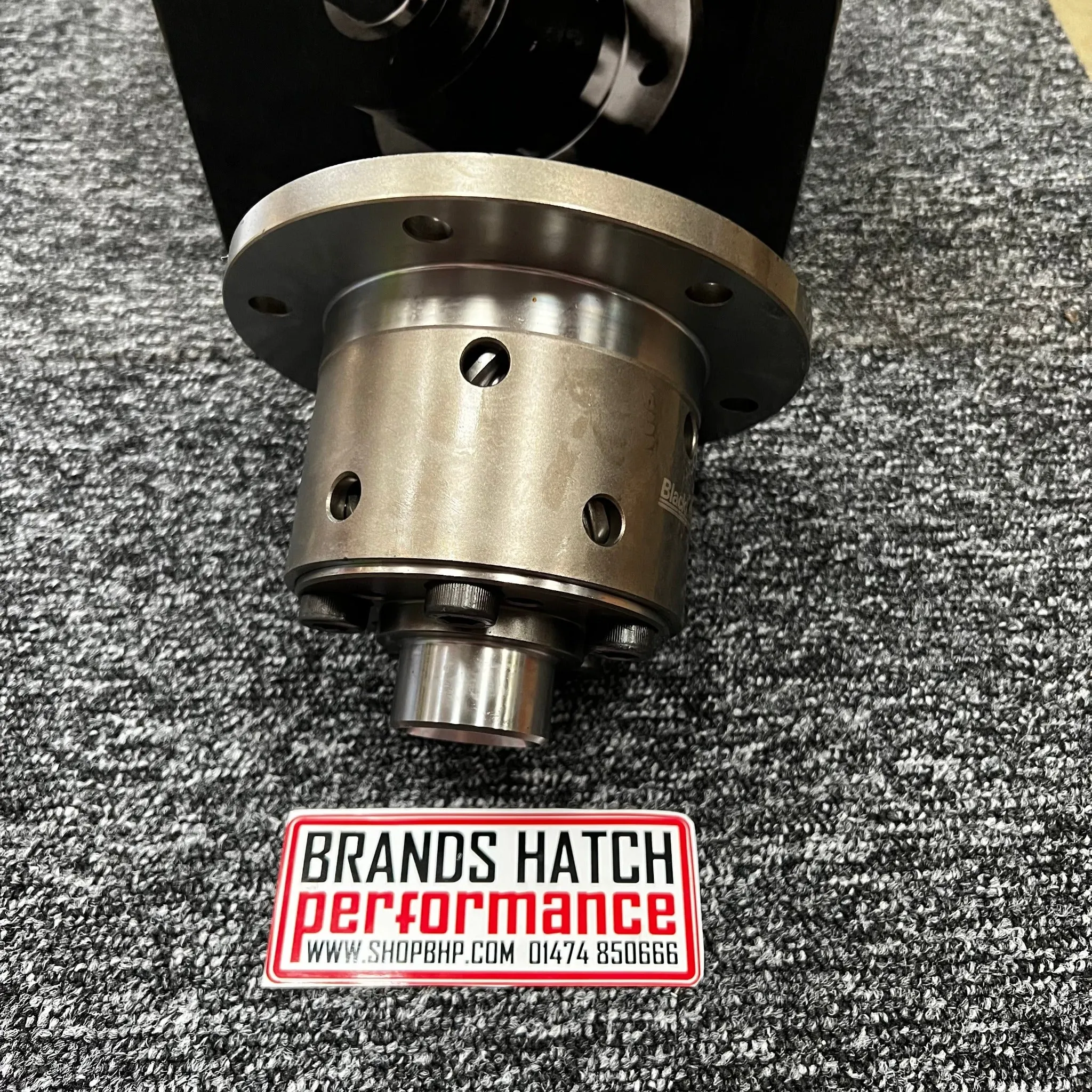

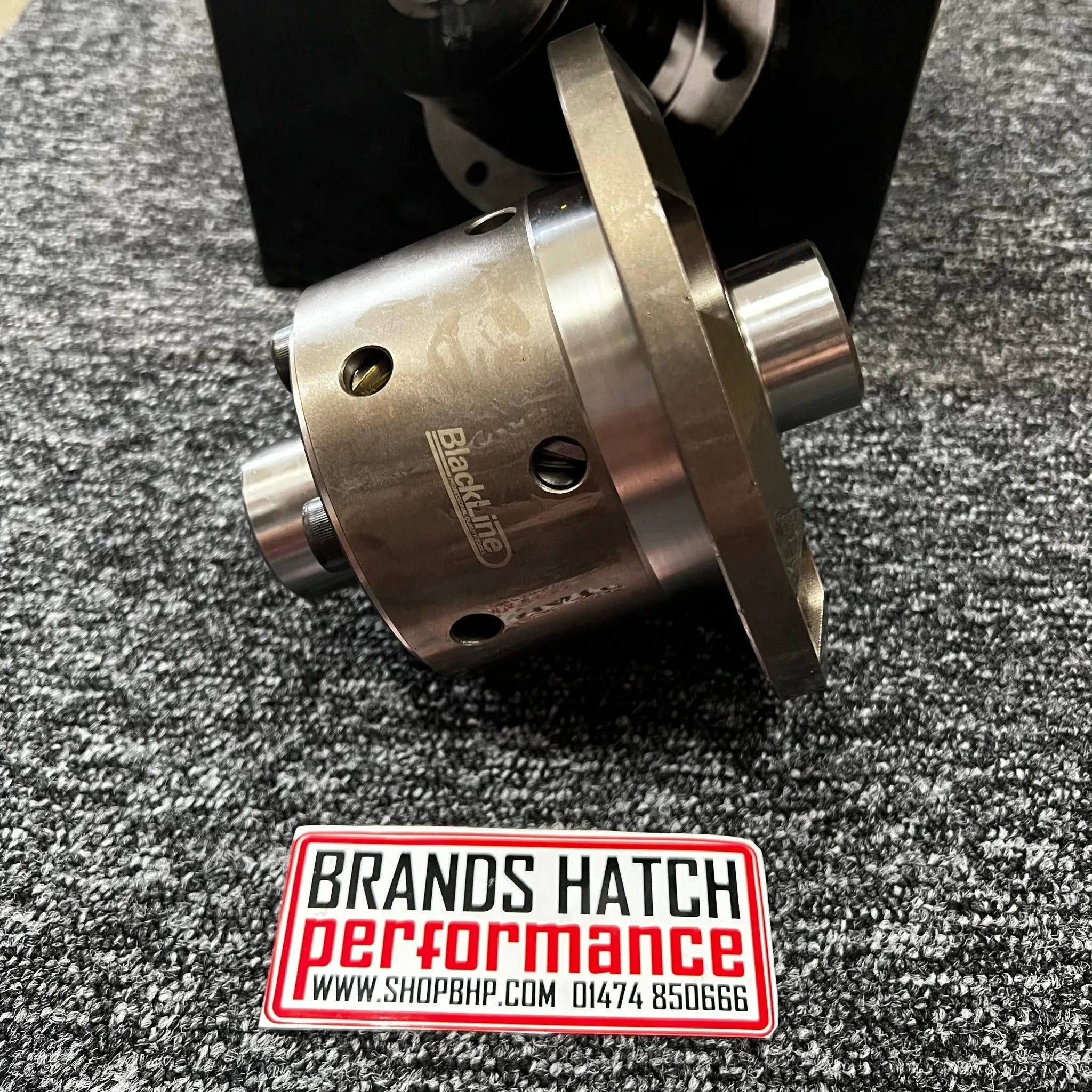

You are buying the Assembled differential unit only, no bearings, gears or gaskets will be included.
